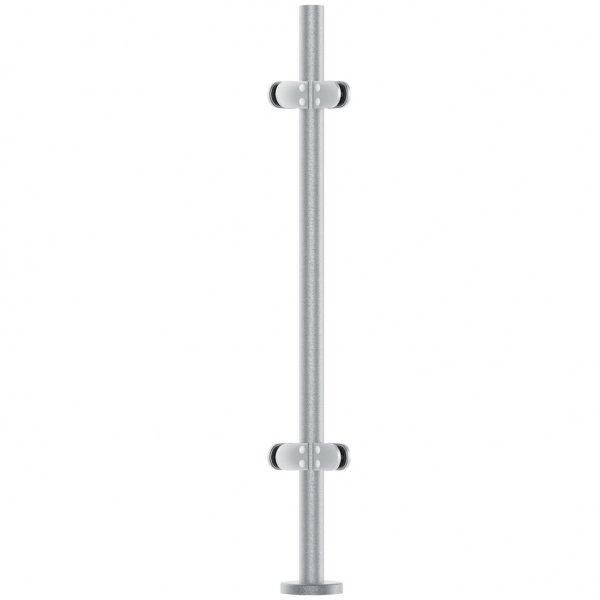

DSM Pre-Assembled Stainless Steel Balustrade Posts – Corner Post
Find fixings HERE
Choose your post then choose your saddle design if required
Our range of pre-assembled posts is designed for ease of installation and to to cut installation times. They are available at 48.3mm diameter and in stainless steel grade 316 suitable for internal and external applications.

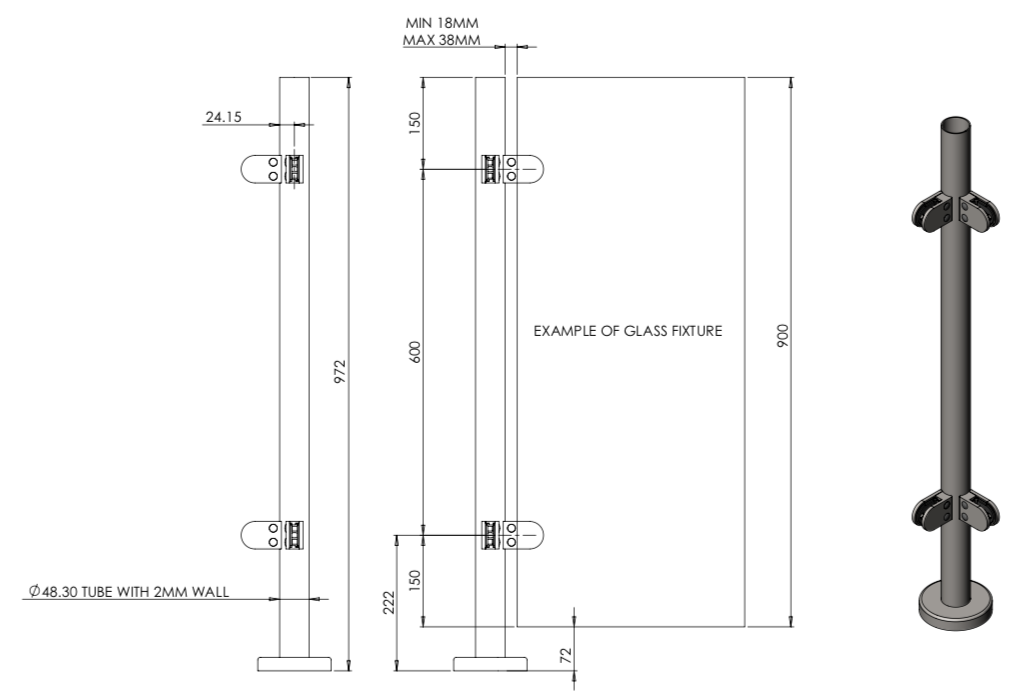

972mm Post when used with a saddle and 48.3mm Handrail will give an overall balustrade height of 1100mm.

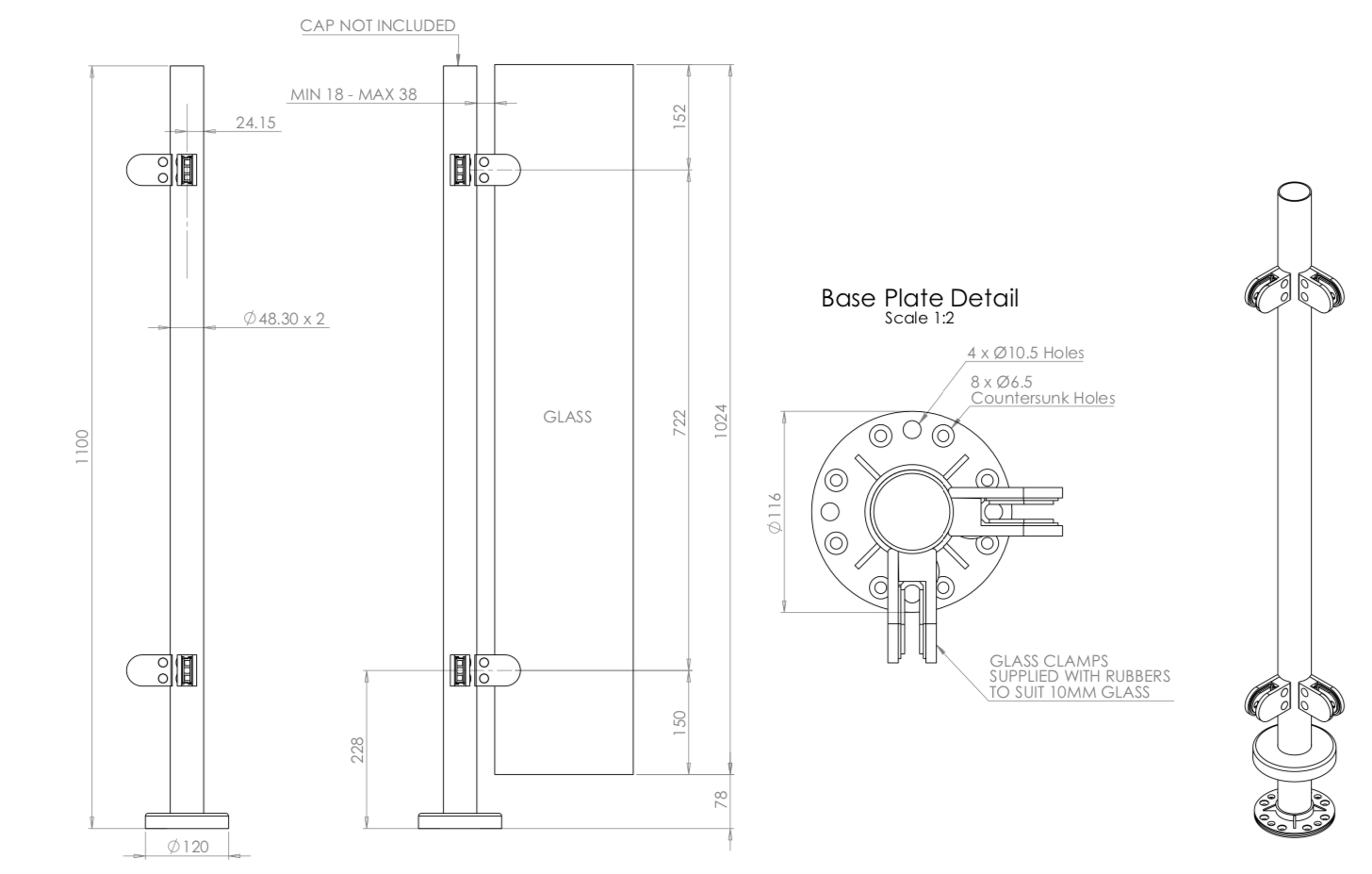

Or choose our 1100mm Post with Cap if no handrail is required for areas with drops below 600mm only.
Maximum Glass Width 1100mm when using posts
*Clamp Positions may differ from drawings depending on supplier
Base fitting with cover plate & rubber “O” rig to secure cover plate
Posts with glass clamps are ready to accept 10mm glass
We recommend cleaning the rubbers used in the clamps before installing as they come from the manufacturer coated in the release agent from the mould, failing to do this could result in the glass slipping.
