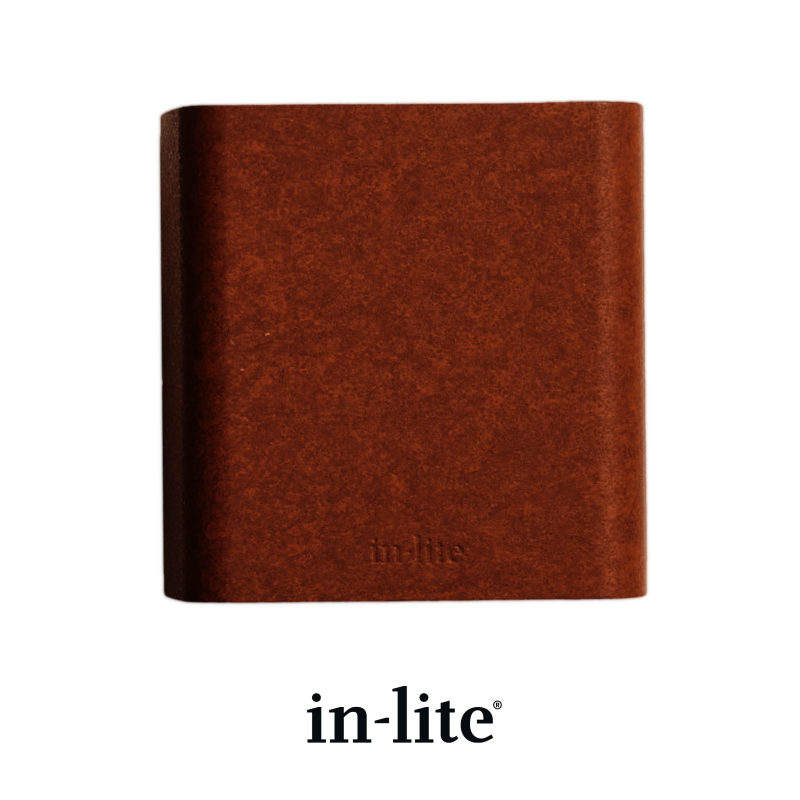

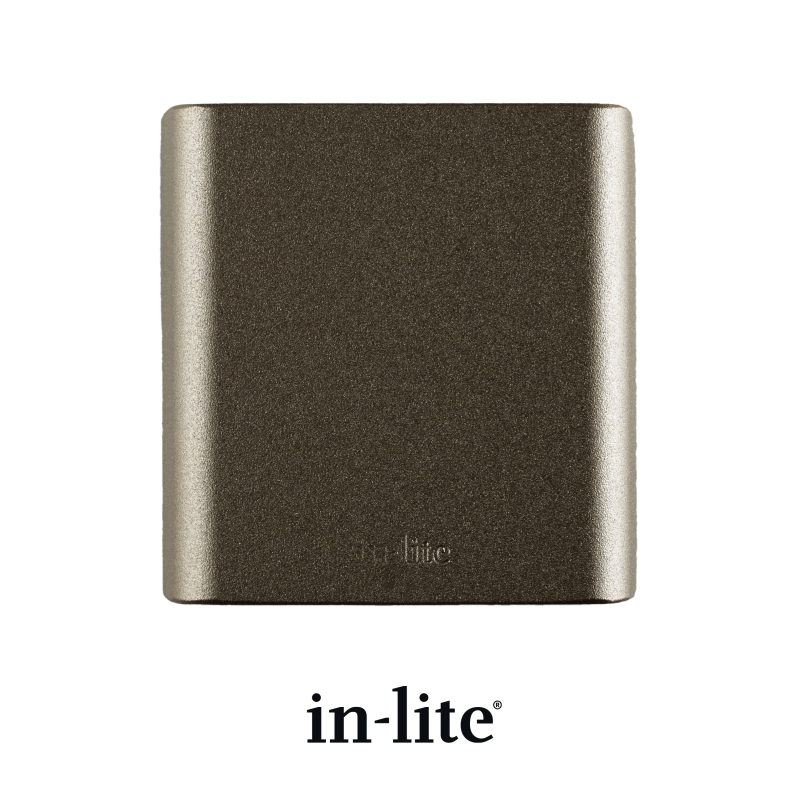

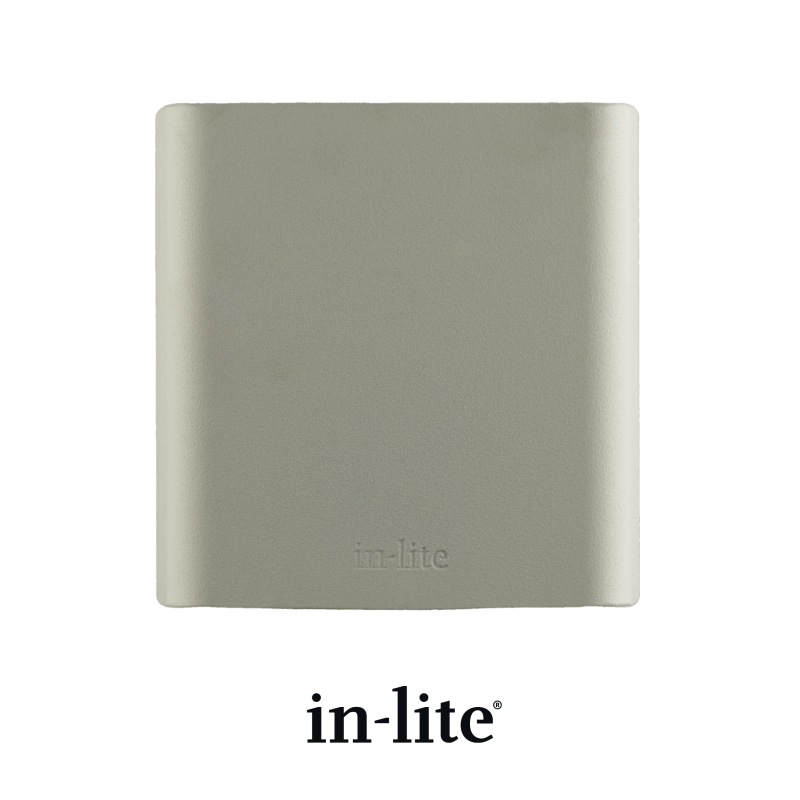

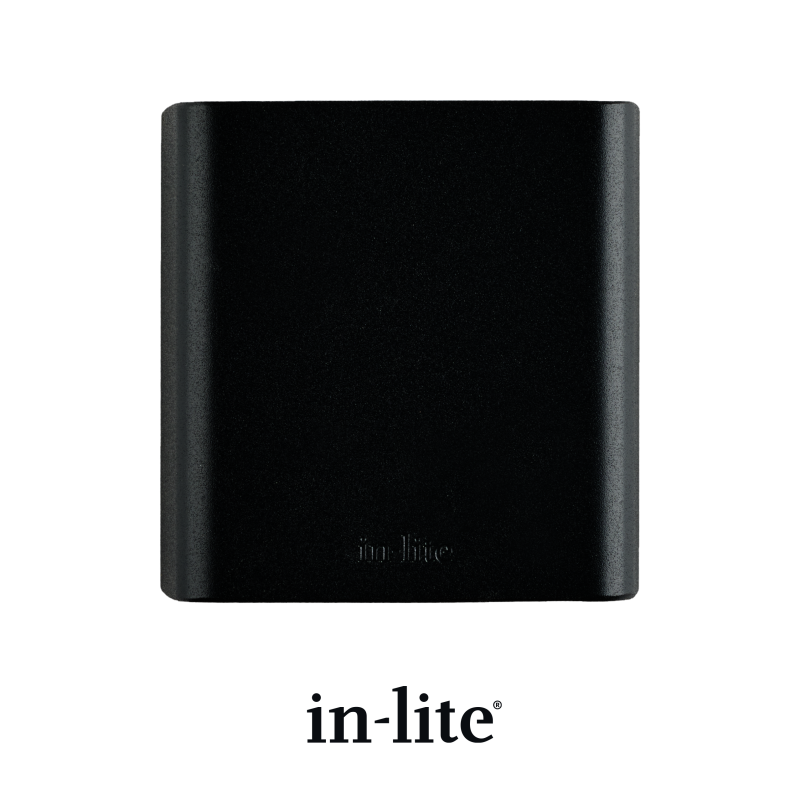

The ACE UP-DOWN 100-230V wall light may only be connected to line voltage.
- Produces a focused upward and downward light

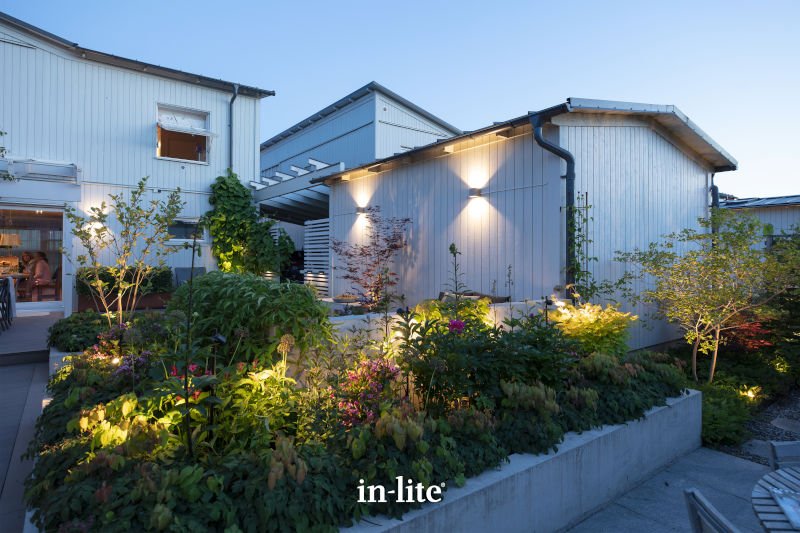

- Designed for illuminating an outside wall
- Connects directly to 230 volt
Installation advice:
An ACE UP DOWN 100-230 V every 2 to 2½ meters at a height of 1.4 to 1.8 meters
PRODUCT DETAILS
The ACE UP-DOWN 100-230V wall light may only be connected to line voltage. The fixture is therefore suitable for mounting on a house, garage or shed. The fixture provides a focused beam of light both upwards and downwards. The width of the light bundles provided by the ACE UP-DOWN can be adjusted using the separately available SHUTTER 1.
SPECS
- Art. nr. 10302050
- Colour Dark Grey-Rose Silver-White-Corten
- EANÂ 8717051003585
- Length mm 103
- Height mm 100
- Width mm 100
- Length inch 4.06
- Height inch 3.94
- Width inch 3.94
- Mounting depth mm 0
- Housing Aluminium
- Voltage 100-230v
- Electric potential 20VA
- Power 8.5W
- Light source LED
- Lighting direction Downwards and upwards
- Lighting reach ft 11.48
- Lighting reach m 3.5
- Burning time 25000
- Colour temperature 3000
- CRIÂ 92
- Net Luminous Flux 346lm
- Energy label G
- IP-class 55
- Application Schutting, Roof, House
- Luminous Efficacy 41lm/W
